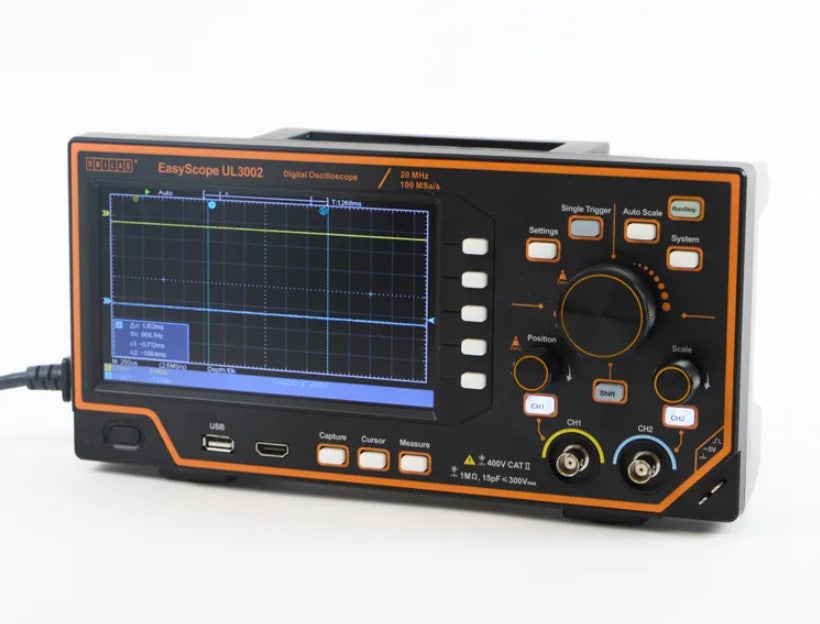

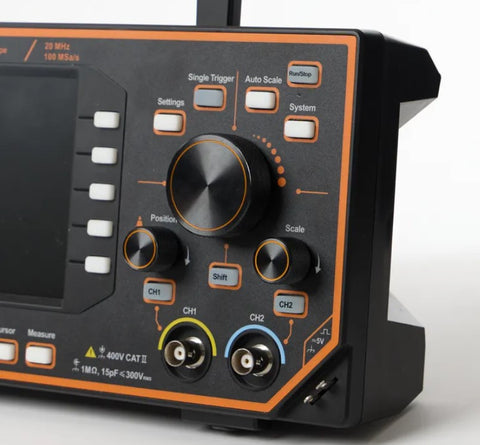

OSCILLOSCOPE DIGITAL EASYSCOPE

The UNILAB EasyScope is a dual channel digital oscilloscope designed specially for the education market as an introductory unit ideal for users who aren’t very familiar with the use of such equipment. With a simplified UI and menu system to aid in quick experiment set-up, this is perfect for required Physics practicals such as Speed of Sound or Charge/Discharge of Capacitor, and for Electronics or Systems and Control projects for circuit troubleshooting. The included manual and provided set-up guides provide easy to follow instructions for setting up the oscilloscope.

Key Features:

Lightweight
Adjustable feet for better display viewing
Foldable Carry Handle
USB PC Connection, USB 2.0 External memory storage, HDMI
Automatic cursor measurement and calculations
Internal storage of up to 16 screens
AutoScale for fast probe compensation and calibration, and quick focus on key waveform features
Quick access Single Trigger mode
Single Dial menu and trigger adjustment for faster and easier setup

Specification:

Bandwidth: 20 MHz

Channels: 2

Sampling: 100 MSa/s

Display: 7" colour TFT display 800x480 pixels

Memory: 10K

Maximum input voltage: 400V (peak-to-peak)

Time base: 5 nS / Div at 100 s / Div

Cursors: Voltage, Time

Measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Rising Edge Delay, Falling Edge Delay, Cycle RMS, Cursor RMS, Screen Duty, Phase

Interfaces: USB PC Connection, USB for memory sticks, HDMI for casting to large display

Dimensions: approx. (W)300mm x (H)150mm x (D)70mm

Weight: approx. 840g
